OPERATIONAL INTEL // MISSION LOGS • 6 FORENSIC CASE STUDIES

INCIDENT DEBRIEFS // CASE STUDIES

Empirical post-incident forensic case studies documenting heavy structural drydowns, negative-pressure bio-containment, industrial NESHAP compliance, and coastal storm surge mitigations across the Texas Gulf Coast.

ACCESS AFTER-ACTION LOGS ↓ VIEW THEATER RADAR →
LOGS DEPLOYED: 6 / 6
SECTOR BRAVO // HOUSTON METROPLEX • REF #EVG-849201
■ TDI FORM MDR-1 ISSUED STATUS: MISSION COMPLETED • PRV CLEARED

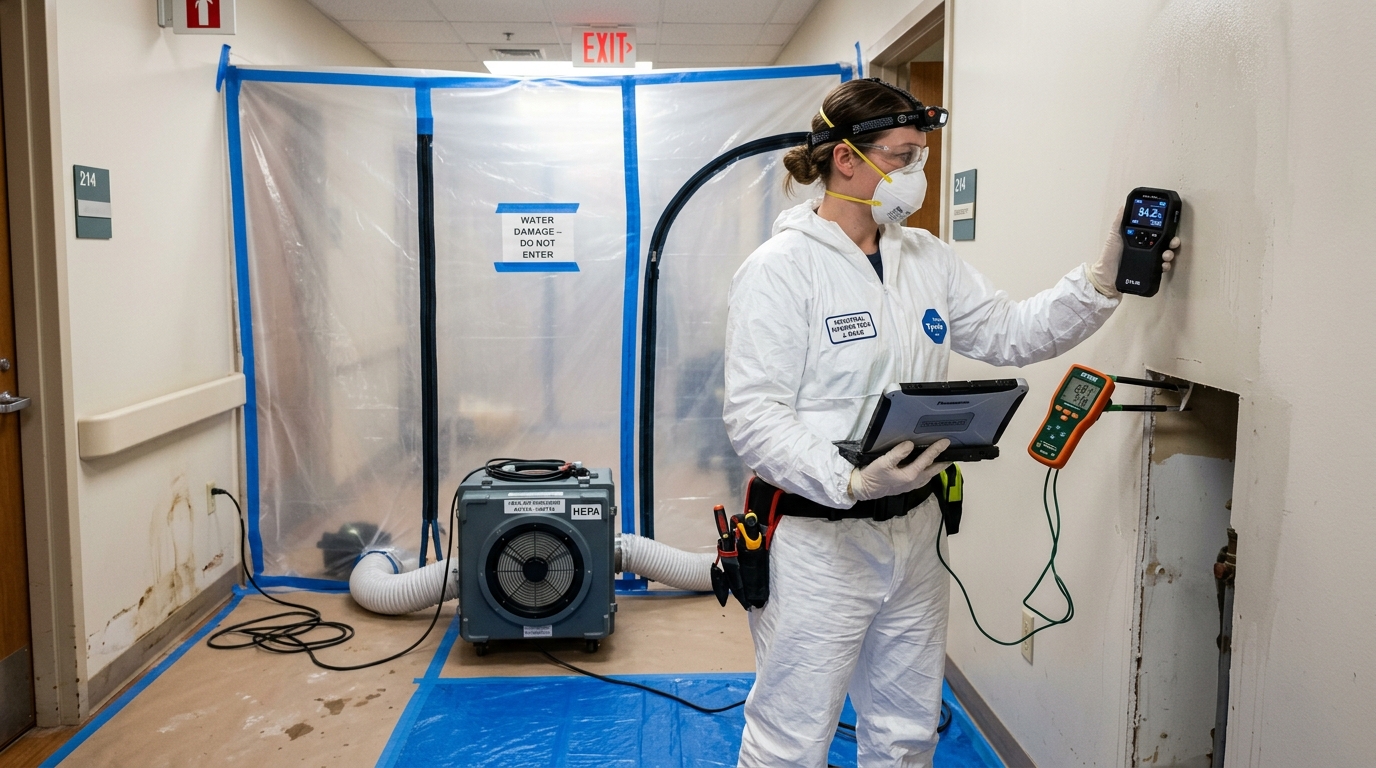

Commercial medical surgical facility negative pressure microbial containment inspection
SITE: SURGICAL SUITE 2B MONITOR: -0.032 IN-WC

OPERATION: CRITICAL DRYING & MICROBIAL CONTAINMENT

SITE BASELINE

COMMERCIAL MEDICAL COMPLEX

14,200 sq. ft. outpatient surgical clinic. Pressurized Category 3 hydronic HVAC loop failure. Initial psychrometrics: 78.4°F / 88.6% RH / 132 GPP. Wall framing registered 34.2% WME with imminent risk of cross-contamination into clean surgical theaters.

PROTOCOL ENGINEERING

PRESSURE CONTROL & DESICCANTS

Constructed airtight poly containment with zipper airlocks maintaining -0.032 in-WC negative pressure differential. Deployed six 2,000 CFM HEPA air filtration units generating 8.2 ACH. Mobilized 5,000 CFM desiccant unit delivering < 34 GPP deep-cavity vapor removal with EPA botanical sanitization.

CLEARANCE METRICS

95.9% SPORE REDUCTION

Spore trap sampling confirmed indoor levels dropped from 8,460 outdoor baseline to 340 spores/m³. Zero marker pathogens detected on culture plates. State Certificate of Mold Damage Remediation (TDI Form MDR-1) issued within 6 days.

LOCATION: HOUSTON METROPLEX • DURATION: 144 HOURS • LOSS MITIGATED: $1.4M+
SECTOR CHARLIE // TEXAS CITY REFINERY CORRIDOR • REF #EVG-910442
■ NESHAP 40 CFR 61 COMPLIANT STATUS: MISSION COMPLETED • DSHS VERIFIED

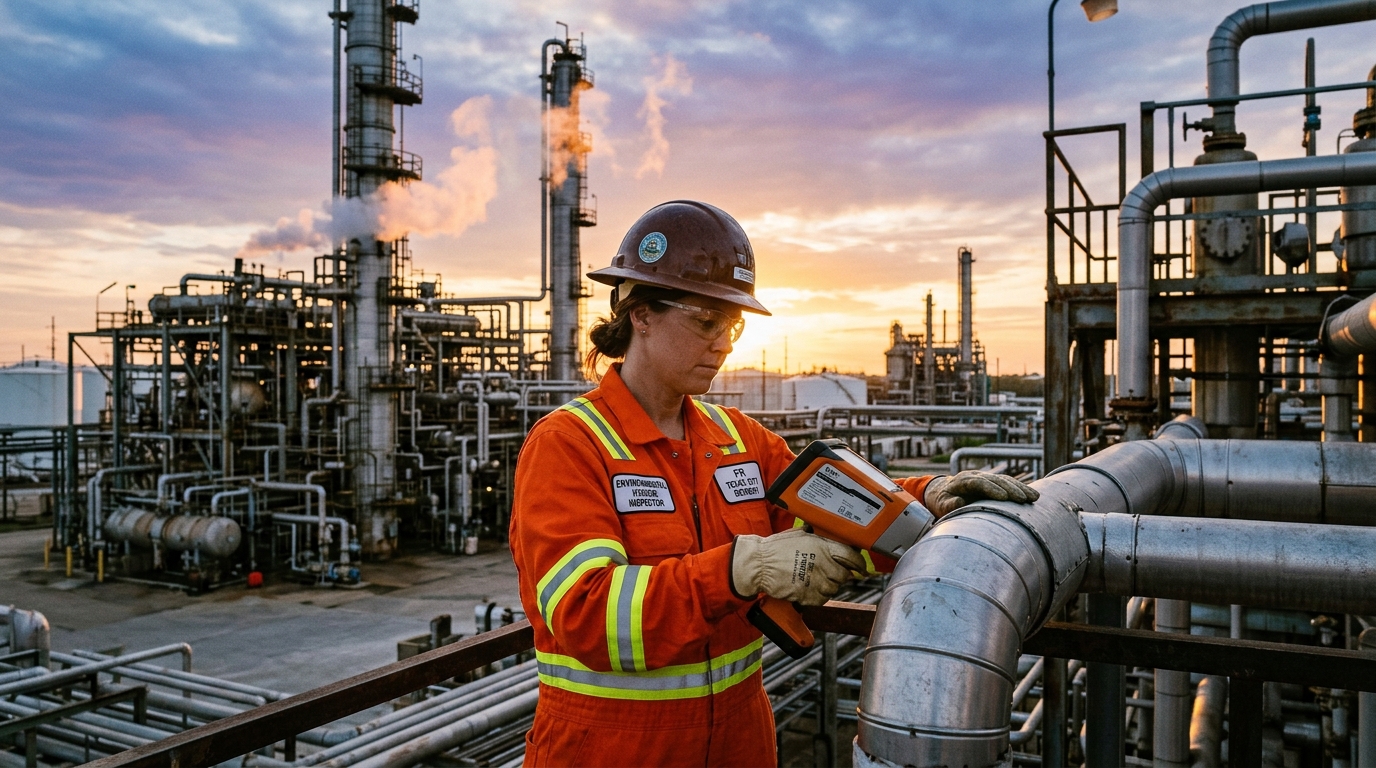

Industrial environmental hygiene inspector with Niton XRF analyzer at Texas City refinery
SITE: FRACTIONATION TOWER 4 NITON XRF: 320 NODES

OPERATION: INDUSTRIAL NESHAP ASBESTOS & XRF LEAD AUDIT

SITE BASELINE

PETROCHEMICAL REFINERY TURNAROUND

42,000 sq. ft. high-heat hydrocarbon fractionation corridor undergoing emergency planned turnaround. 2,400 linear ft of suspect thermal pipe insulation and 50,000 sq. ft. structural coatings requiring immediate regulatory hazard screening before torch cutting.

PROTOCOL ENGINEERING

NESHAP 40 CFR 61 & SPECTRUM XRF

Executed 128 core PLM samples under 4-hour rush turnaround in our Galveston TDLR/DSHS-accredited laboratory. Niton XLp XRF radiometer non-destructively screened 320 structural steel nodes for lead primer under full Level B containment.

CLEARANCE METRICS

ZERO FACILITY DOWNTIME

100% regulatory air clearance confirmed via PCM (NIOSH 7400) under < 0.01 f/cc. Complete state and federal compliance documentation furnished in 36 hours, averting $350K/day facility outage penalties.

LOCATION: TEXAS CITY INDUSTRIAL CORRIDOR • DURATION: 36 HOURS • DSHS #2071399 CERTIFIED
SECTOR ALPHA // GALVESTON ISLAND COMMAND • REF #EVG-773190
■ 100% HISTORIC PRESERVATION STATUS: MISSION COMPLETED • PRV CLEARED

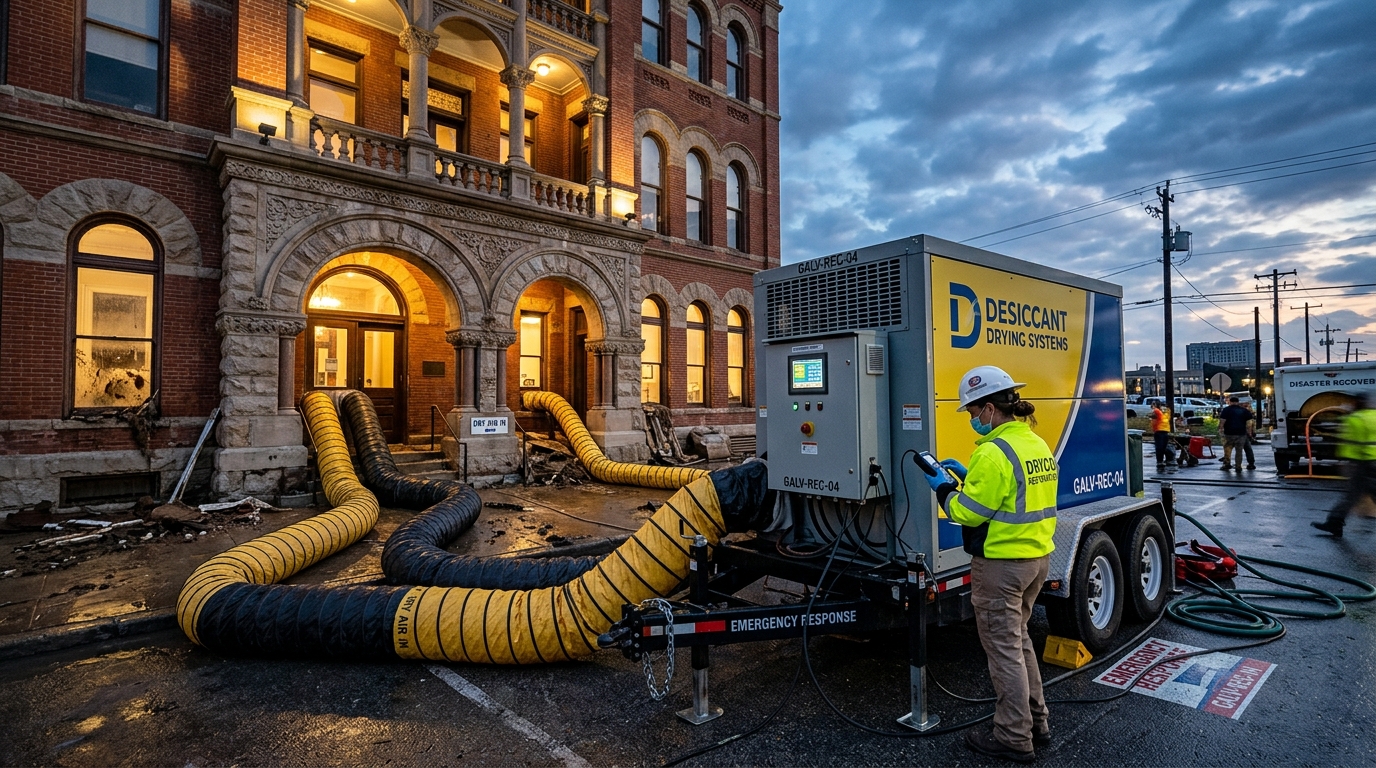

Industrial desiccant dehumidifier trailer operating at historic Galveston landmark after storm surge
SITE: STRAND HISTORIC DISTRICT EXTRACTION: 22,000 GAL SALINE

OPERATION: BARRIER ISLAND CYCLONIC SURGE RESTORATION

SITE BASELINE

HISTORIC WATERFRONT LANDMARK

18,500 sq. ft. multi-story Victorian landmark inundated by 2.5 ft brackish storm surge. Subfloor cavity relative humidity registered 94% ERH with aggressive Aspergillus and Penicillium proliferation threatening irreplaceable 1890s millwork.

PROTOCOL ENGINEERING

DEEP DESICCANTS & BOTANICAL PURGE

Bulk extraction purged 22,000 gallons of saline floodwater within 14 hours. Closed-loop 10,000 CFM desiccant dehumidification maintained sub-30 GPP grain depression. Applied EPA-registered thymol botanical antimicrobials to virgin longleaf pine structural timbers.

CLEARANCE METRICS

100% TIMBER SALVAGE

Structural framing moisture content stabilized at 12.4% WME with zero dimensional warping or rot. Spore counts confirmed equal to clean ambient ocean air. 100% preservation achieved with zero historic demolition required.

LOCATION: GALVESTON ISLAND • DURATION: 7 DAYS • TDLR LAB #1050 CERTIFIED
SECTOR ECHO // CLEAR LAKE AEROSPACE • REF #EVG-629810
■ ISO 14644-1 CLASS 7 VERIFIED STATUS: MISSION COMPLETED • QA VALIDATED

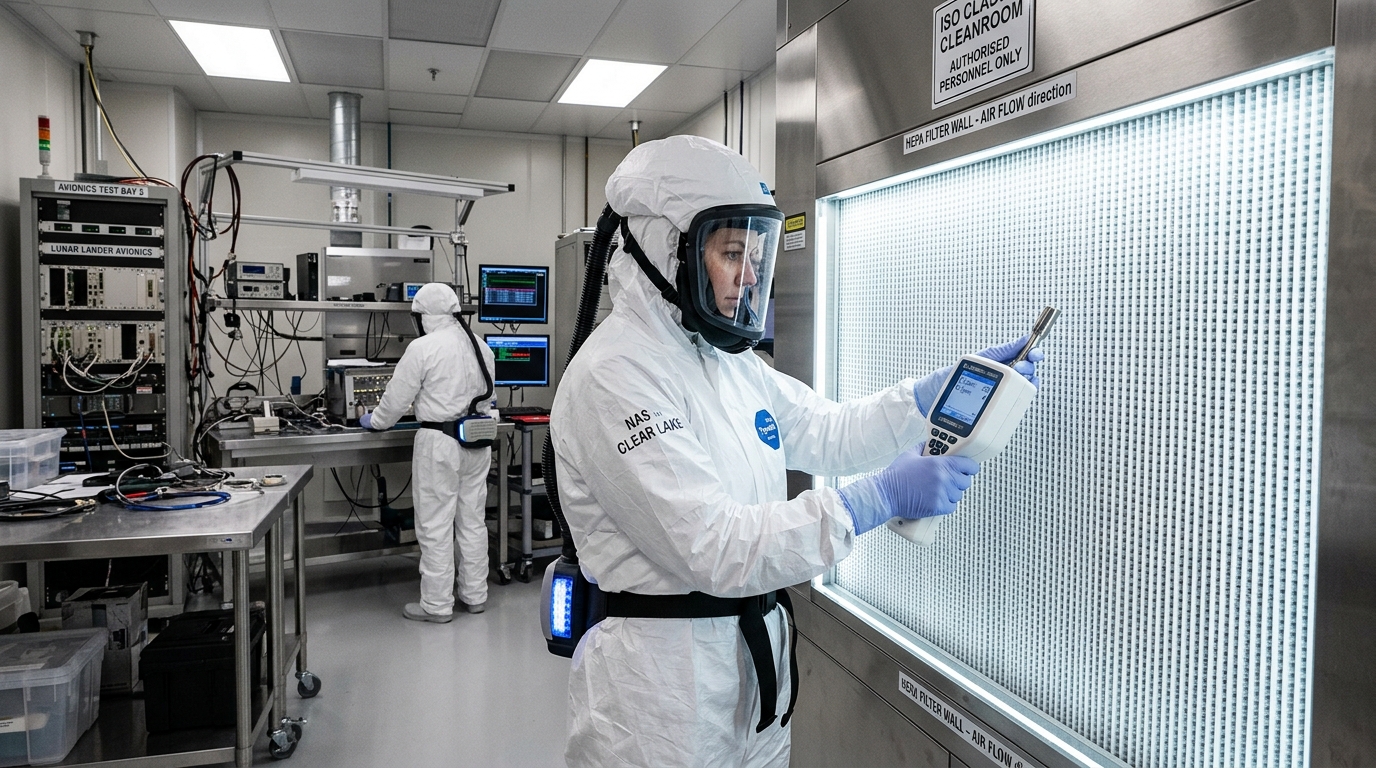

Specialist conducting laser particle count and HEPA bio-burden validation in aerospace cleanroom
SITE: AVIONICS BAY 3 PARTICLE COUNT: ISO CLASS 7

OPERATION: ISO CLASS 7 CLEANROOM BIO-BURDEN DECONTAMINATION

SITE BASELINE

AEROSPACE AVIONICS FACILITY

8,500 sq. ft. flight hardware cleanroom. Blocked HVAC condensate drain caused localized microbial biofilm proliferation in primary supply plenums. Particulate counters detected 4.8x baseline elevation at 0.5 μm, breaching ISO 14644-1 standards.

PROTOCOL ENGINEERING

MICRO-MIST HPV & 24 ACH HEPA

Established an isolated secondary negative-pressure envelope. Deployed automated hydrogen peroxide vapor (HPV) dry-fog micro-misting and multi-stage 99.99% HEPA filtration scrubbers operating continuously at 24 air changes per hour (ACH).

CLEARANCE METRICS

ZERO CFU RESIDUAL COUNTS

Total particulate concentrations dropped below 352,000 particles/m³ at ≥ 0.5 μm. Surface contact RODAC agar plates recorded 0 CFU growth across 48 sampled avionics workbenches. ISO certification re-established in 48 hours with zero hardware loss.

LOCATION: CLEAR LAKE / NASA CORRIDOR • DURATION: 48 HOURS • ISO 14644-1 COMPLIANCE
SECTOR FOXTROT // HOUSTON SHIP CHANNEL • REF #EVG-551044
■ OSHA PEL & TCEQ COMPLIANT STATUS: MISSION COMPLETED • AIR CLEARED

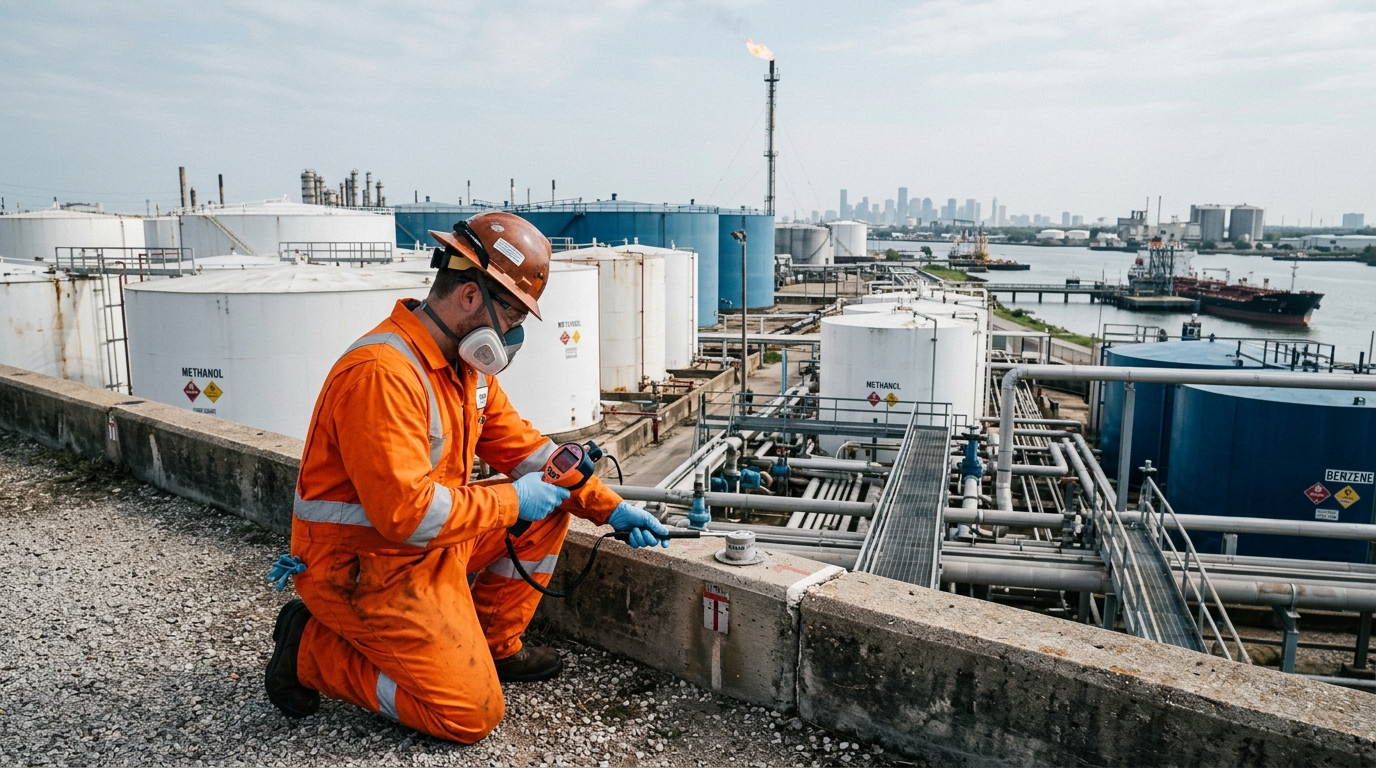

Industrial environmental hygiene specialist conducting photoionization detector VOC screening at ship channel chemical terminal
SITE: TANK BERM CORRIDOR 7 PID: PHOTOIONIZATION ACTIVE

OPERATION: VOC VAPOR INTRUSION & TOXIC AIR CLEARANCE

SITE BASELINE

PETROCHEMICAL BULK TERMINAL

Marine terminal operations command center. Subsurface benzene and volatile organic compound (VOC) vapor intrusion through concrete expansion joints following a transfer valve rupture. Handheld PID readings peaked at 14.8 ppm total VOCs inside employee control areas.

PROTOCOL ENGINEERING

ACTIVE VAPOR EXTRACTION & CARBON BEDS

Installed dual-train virgin coconut-shell activated granular carbon (GAC) air scrubbers with spark-proof blowers. Engineered sub-slab negative pressure extraction creating a continuous -0.050 in-WC barrier below the foundation slab.

CLEARANCE METRICS

AMBIENT CONCENTRATION < 0.05 PPM

8-hour continuous photoionization detection and Tedlar bag GC-MS laboratory verification demonstrated zero detectable benzene (< 0.01 ppm). Indoor air cleared well below OSHA Permissible Exposure Limits (PEL). Terminal operations resumed within 24 hours.

LOCATION: PASADENA / SHIP CHANNEL • DURATION: 24 HOURS • OSHA & TCEQ COMPLIANT
SECTOR ALPHA // GALVESTON WHARVES • REF #EVG-498212
■ USCG SUBCHAPTER T CLEARED STATUS: MISSION COMPLETED • PRV CERTIFIED

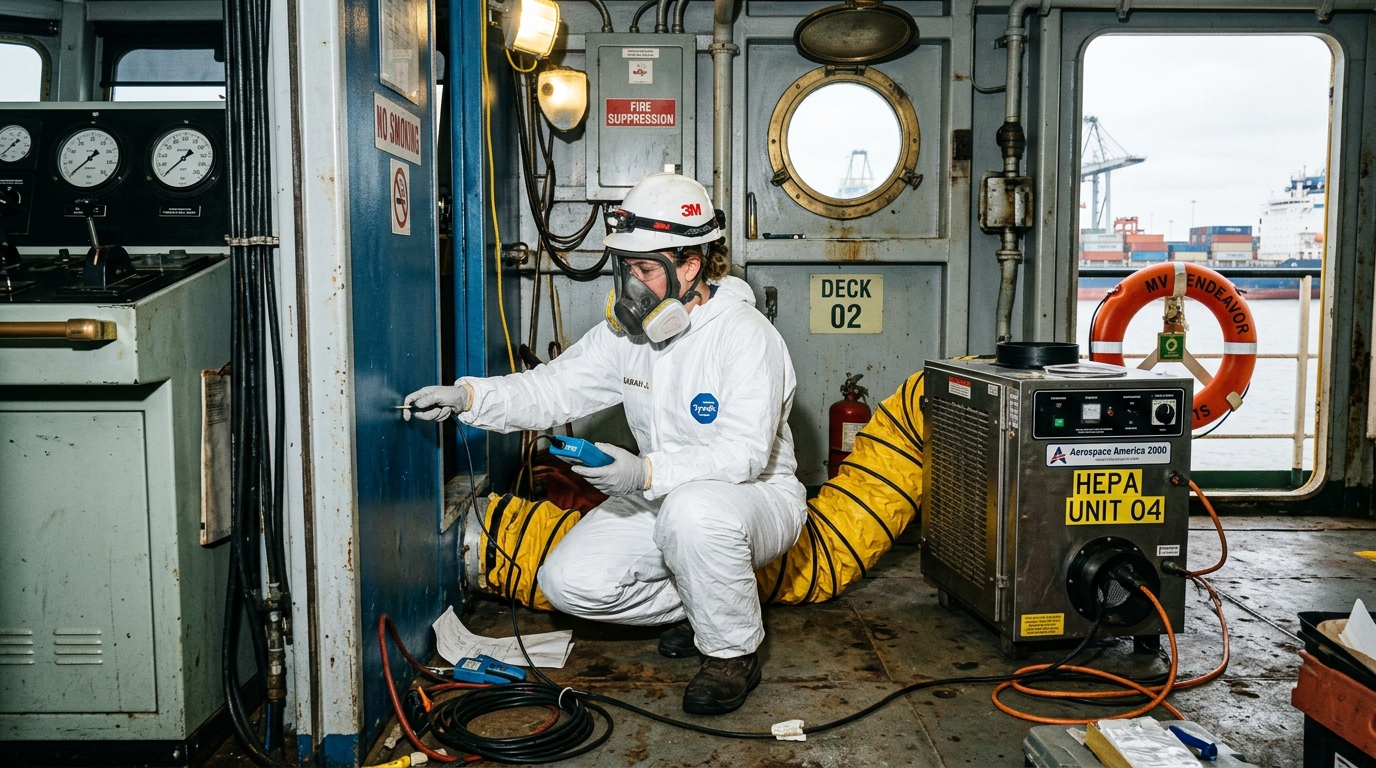

Environmental marine remediation specialist inspecting bulkheads and HEPA unit on offshore vessel
SITE: OFFSHORE VESSEL BERTH 14 CONTAINMENT: USCG CERTIFIED

OPERATION: MARITIME VESSEL ACCOMMODATION REMEDIATION

SITE BASELINE

COMMERCIAL OFFSHORE SUPPORT VESSEL

240 ft offshore supply vessel berthing quarters. Extended chilled-water HVAC malfunction during deep Gulf transit created heavy condensation across 16 crew staterooms and galley. Extensive Stachybotrys and Chaetomium growth covered marine composite bulkheads.

PROTOCOL ENGINEERING

MARINE NEGATIVE AIR & DESICCANTS

Isolated accommodation levels under -0.025 in-WC negative pressure using heavy-duty flame-retardant marine barriers. Exhausted through deck escape hatches via stainless-steel HEPA filtration scrubbers. Closed-loop trailer desiccant purged trapped moisture from insulated hull framing.

CLEARANCE METRICS

< 100 SPORES/M³ AIR CLEARANCE

Post-remediation Air-O-Cell cassette testing verified background levels under 100 spores/m³ across all crew quarters with zero marker spores. United States Coast Guard (USCG) marine inspection approved immediate vessel sailing clearance in 5 days.

LOCATION: GALVESTON HARBOR • DURATION: 5 DAYS • TDLR LAB #1050 / USCG COMPLIANCE
